L801 / L801+ Industrial Color Label Printers | Powered By Memjet

  • $11,990.00

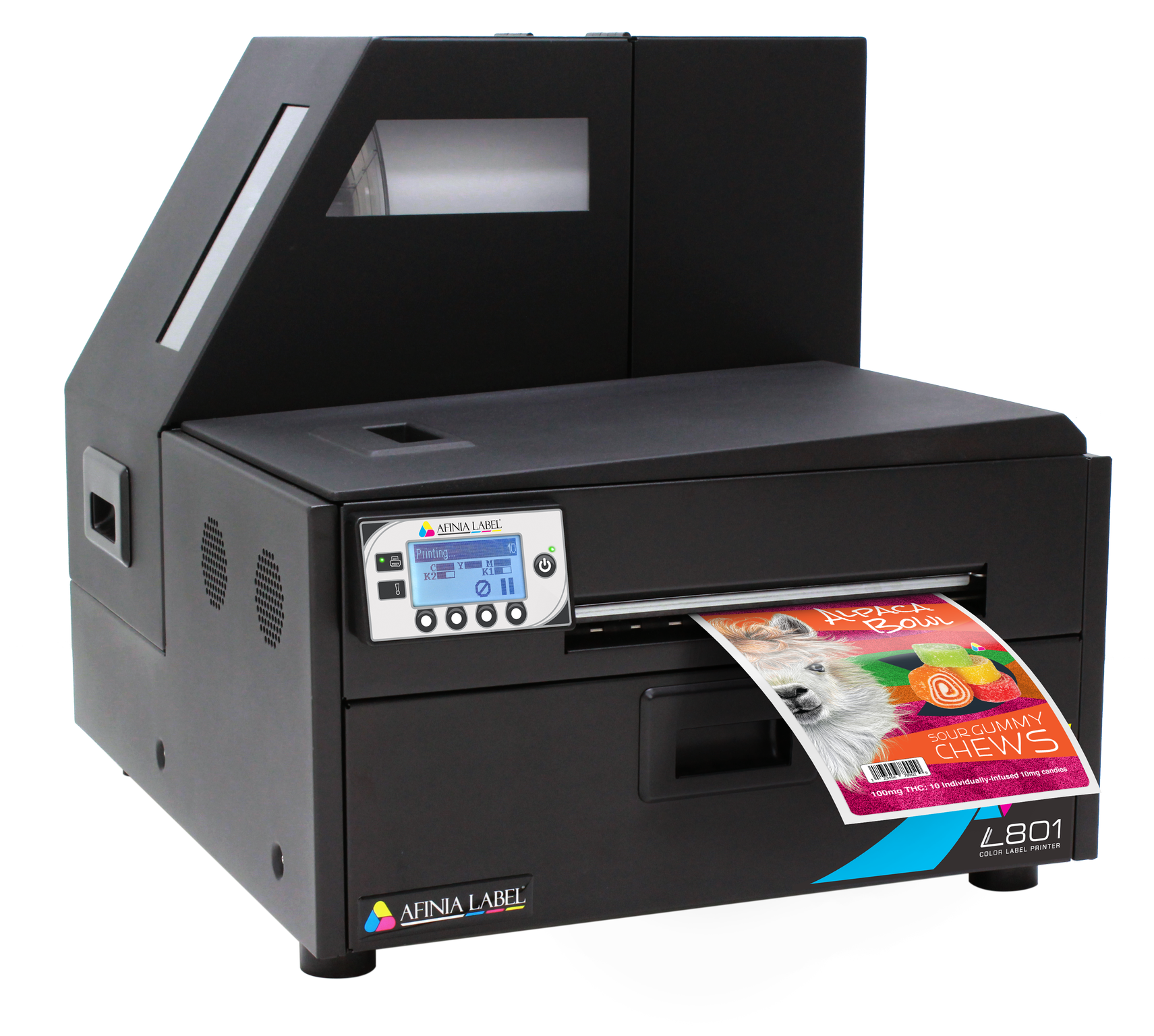

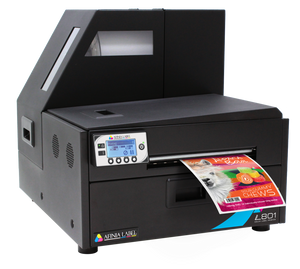

Afinia Label's L801 Color Label Printer is an industrial web-fed inkjet solution, ideal for short- to medium-range print runs for inventory and product identification applications. It’s easy to use, has an integrated unwinder, works with any Windows-based application, and is available with an optional rewinder. The L801 is compatible with a wide range of paper, polyester, polypropylene, and vinyl label stocks from major vendors.





Watershield™ for Water-Resistant Labels

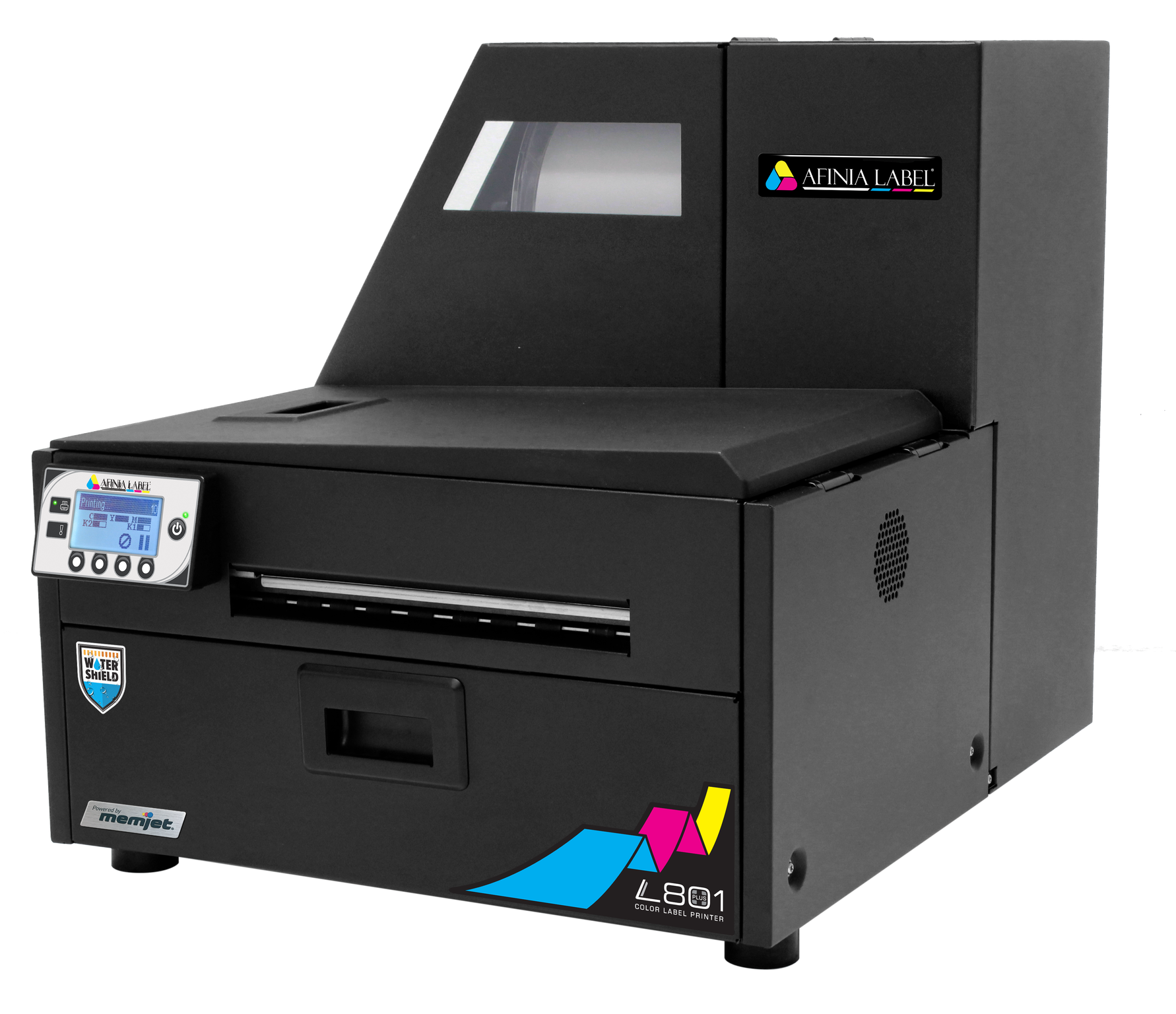

Upgrade your printer to Afinia's L801 Plus for increased water and moisture resistance1. This option (L801+) costs $11,490 each.

Watershield-printed labels are significantly more resistant to the effects of prolonged moisture exposure than conventional dye-based inkjet labels. This makes the L801 Plus is perfect for applications such as chilled beverages, foods, chemical or pharmaceutical products.

This new technology also produces deeper blacks, uses more responsibly-sourced inks2, and helps to prolong the life of the printhead3.

1 Water resistance can be media-dependent. Always test your printed label to be sure it meets your requirements.
2 Watershield™ inks do not contain chemicals that are considered to be dangerous and/or harmful to humans or the environment
3 Memjet tested ejection life internally and found an average above 2X printhead life. Actual results may vary due to factors such as environment and frequency of use.


Memjet Label Printer

Afinia Label's L801 Industrial Color Label Printer is a digital label printer that uses Memjet technology, allowing you to print high-impact, full-color output at up to 60 ft/min (18 m/min). Memjet’s stationary “waterfall” printhead technology allows paper to move quickly through the printer, while maintaining excellent print resolution.

Digital printing has grown significantly and digital label presses are becoming more common in “traditional” print shops.

High Quality & Resolution

Using the L801 industrial color label printer, you can print at up to 1600 x 1600 dpi for vivid, eye-catching labels. By using CMYKK, the L801 offers exceptional color and rich blacks, giving you the ability to print with better contrast.

Low Cost of Ownership

Afinia Label Memjet label printers allow you to save on consumables. The L801 holds 1.25 liters of ink to support large runs, and offers an industry-leading low ink cost. You can visit our online ink cost calculator to determine the estimated cost of your labels based on label size and percent ink coverage, or see how the L801 has a great return on investment.




Optional Label Rewinder

The L801 Optional Label Rewinder makes managing your labels easy, and allows you to conveniently rewind your labels right onto a 3″ core. It’s a great, recommended addition for companies that experience high usage or heavy duty jobs.

The rewinder can handle label sizes up to 8.5″ wide and rolls with up to 12″ outside diameter, and gives you the ability to choose the direction of rotation, to situate labels to be either face in or face out.

Once rewinding is complete, simply remove the core holder and completed roll.


Specifications

Printer

Print method: Memjet Waterfall Printhead Technology® 11 Integrated Circuit (IC) Chips – 70,400 nozzles (6,400 per IC Chip)
Ink type: Dye
Print resolution: 1600 x 1600 dpi or 1600 x 800 dpi
Print speed: 6 inches (152 mm) per second or 12 inches (305 mm) per second
Print width: 8.5 inches (216 mm)
Media types: compatible with a wide range of paper, polyester, polypropylene, and vinyl label stocks

Media

Width: 2″–8.5″ (50.8  mm216 mm)
Thickness: Minimum 0.005″ (0.13 mm) Maximum 0.01″ (0.3 mm, including liner)
Core diameter: Requires 3″ (76.2 mm) cardboard core
Media sensors: Gap, continuous, black mark
Die-cut label gap: Minimum 0.125″ (3.0 mm) Maximum 0.3″ (8.0 mm)
Black mark size: (3 mm wide, 25.4 mm long on left)
Maximum die-cut label length: 12″ (304.8mm)
Maximum continuous print length: 40″ (1016mm)

General

Interfaces: USB, TCP/IP (Manual IP configuration or DHCP), GPIO available for external device control
Operating system: Windows 7, 8, and 10 (32 and 64 bit)
Barcode font: 1D Barcode at least Grade B (Code39) with 10mils bar width
Two-dimensional code printing: 2D Barcode at least Grade B (PDF417) with 10mils cell size
Operating temperature: 15°35° C (59°95°F) at RH 2080%
Storage temperature: -5°50° C (23°113°F) at RH up to 85%, non-condensing at 65°
Overall dimensions: 18.9″ (480mm) W, 19″ (485mm) D, 21.1″ (535mm) H
Weight: 83 lbs. (37.6kg)
Rated voltage: AC 110V – 220V
Rated frequency: 50 – 60Hz
Warranty: One year
Afinia Part Numbers:
  • L801 Standard
  • L801 Printer: 23139
  • Black Ink: 22453
  • Cyan Ink: 22467
  • Magenta Ink: 22474
  • Yellow Ink: 22460
  • L801 Plus (Watershield™)
  • L801 Plus Printer: 31091
  • Black Plus Ink: 30412
  • Cyan Plus Ink: 30424
  • Magenta Plus Ink: 30433
  • Yellow Plus Ink: 30419
  • L801 XL Rewinder: 29110
