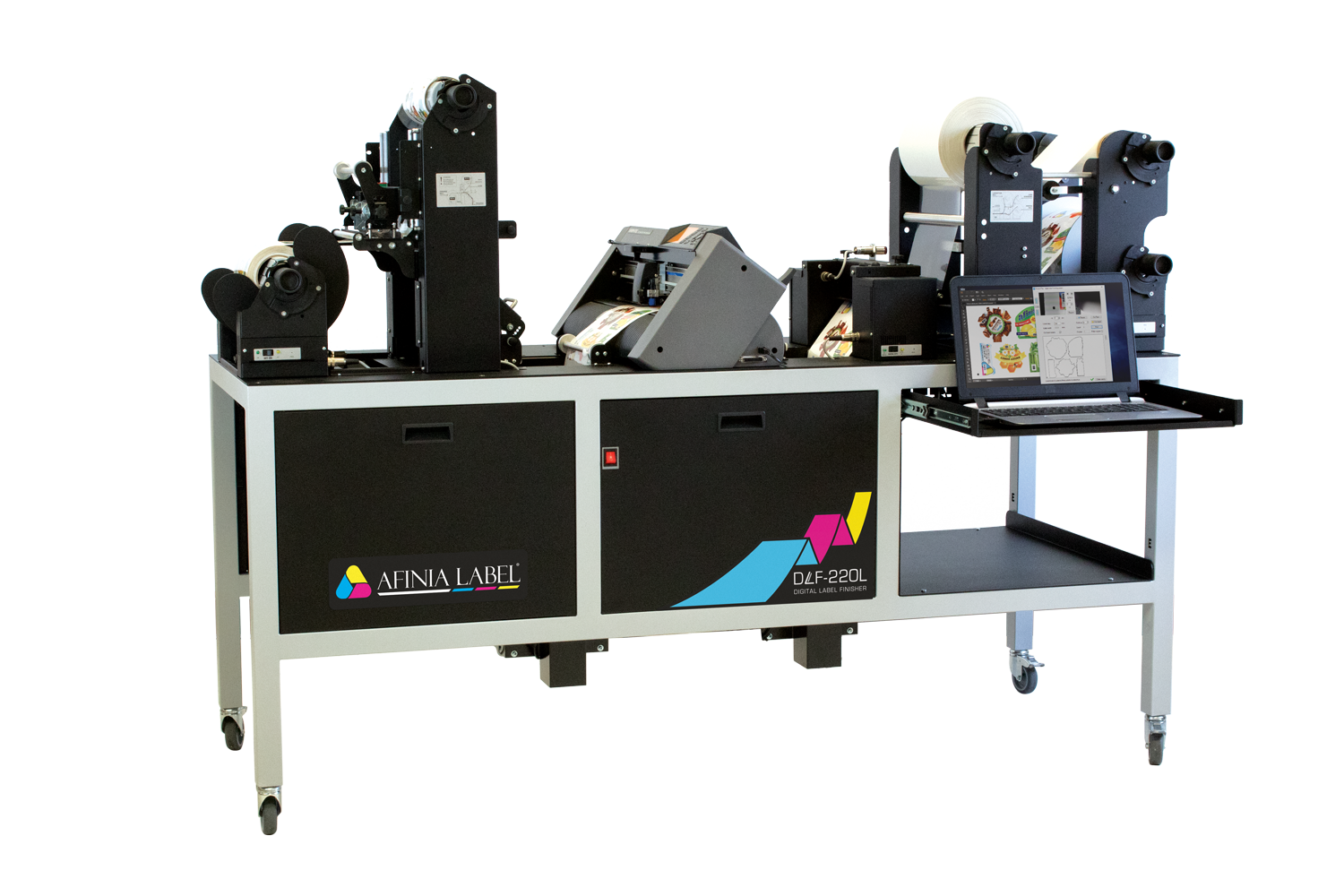

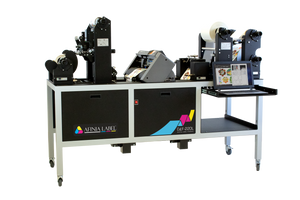

DLF-220L Digital Label Finisher

  • $33,900.00

Reduce Costs

Afinia Label's DLF Digital Label Finisher Series enables your company to produce short-run labels in-house, reducing inventory requirements and their associated costs. Enjoy additional savings by eliminating pre-cut label rolls and minimum gap requirements when printing in full bleed.

Precision & Durability

Featuring ultra-precise cutting abilities, Afinia's DLF Series solutions easily produce beautiful full-bleed labels. The DLF-220L and DLF-350L can also laminate labels for added durability—no need for special label media.

Advanced Plotter Cutting Technology

All systems have advanced plotter cutting technology. This allows you to cut different types of material and shapes, on the fly, without the additional cost of dies. They are also equipped with Afinia's cutter management tool/camera black-mark registration system. This provides cutting speed optimization without synchronization issues.

View Brochure | [PDF]

Afinia Label DLF-220L Digital Label Finisher video

DLF Digital Label Finisher Series Overview

The Afinia Label DLF Series includes all-in-one systems that unwind, laminate*, knife cut, remove waste, slit, and rewind in one simple process to create professionally finished labels. These solutions are perfect for on-demand, short run label finishing from digital color label printers. Please refer to the comparison chart below for information on each product’s specifications.

*Lamination Options

The DLF-220L and DLF-350L laminate (with or without a liner) for added label durability. The DLF-220 does not include lamination, and is ideal for businesses using pigment-based ink, or laser technology printers (water and fade resistant).

3D Model

Left click = Rotate model   |   Right click = Move model   |   Scroll = Zoom in/out

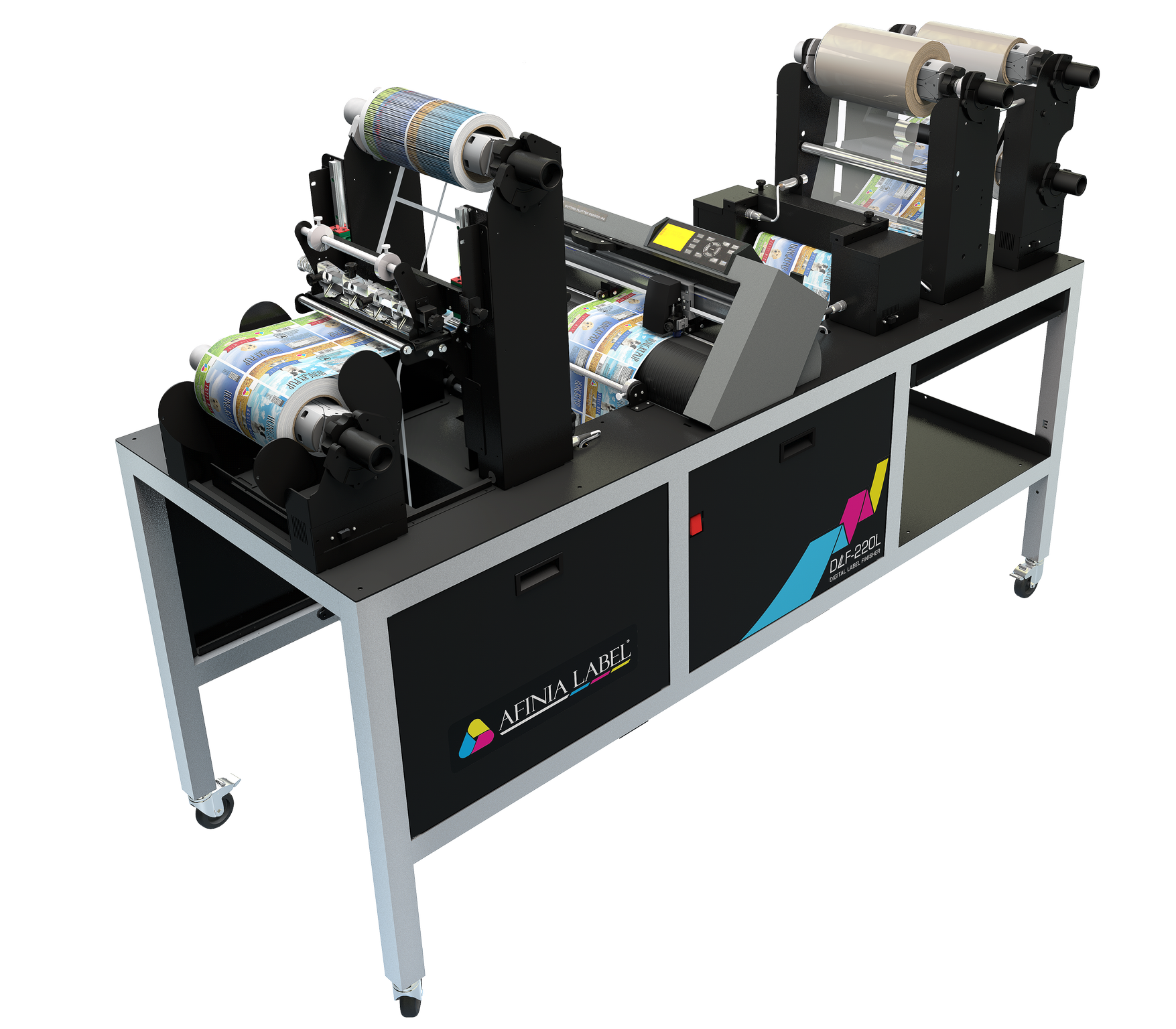

Afinia Label DLF-220L Digital Label Finisher by afinialabel on Sketchfab

DLF Series Product Specification Comparison

DLF-220 DLF-220L DLF-350L
DLF-220L Digital Label Finisher Afinia Label DLF-220L Digital Label Finisher Afinia Label DLF-220L Digital Label Finisher
Input / Output Roll Diameter 9.84” (250 mm) 9.84” (250 mm)
Minimum Web Width 4.33” (110 mm) 4.33” (110 mm)
Maximum Web Width 8.86” (225 mm) 14” (355 mm)
Maximum Cutting Width 7.87” (200 mm) 13” (330 mm)
Minimum Slitting Width 0.75” (19 mm)
Minimum Label Length 0.39” (10 mm)
Maximum Label Length 15” (381 mm)
Lamination Module NO YES
Number of Slitting Blades up to 8 up to 13
Minimum Media Thickness 0.01″ (0.25 mm) (10 mil)
Maximum Cutting Speed 24 in/s (600 mm/s) in all directions
Roll Core Size 3” (76 mm)
Agency Certifications CE, FCC, RoHS
Warranty One Year Parts and Labor. Usage Limitation may apply
