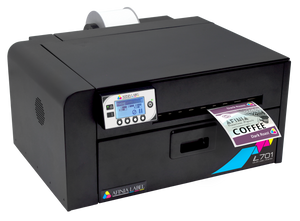

L701 Color Label Printer | Powered By Memjet

  • $6,990.00


Affordability Without Compromise

Afinia Label's L701 Color Label Printer—our lowest initial cost offering with Memjet technology—allows you to print high-impact, full-color labels without breaking the bank. The L701 is a great fit for multiple-printer installations or applications where high performance, low initial investment, and a smaller footprint are all required.

High Quality & Resolution

Get all the benefits of Memjet in a consolidated form factor. Memjet’s stationary “waterfall” printhead technology allows paper to move quickly through the printer while maintaining excellent print resolution. Print at up to 1600 x 1600 dpi for vivid, eye-catching labels. By using CMYKK, Afinia Label's L701 offers exceptional color and rich blacks, giving you the ability to print with excellent contrast.

Low Label Costs

The Afinia Label L701 holds five large 150mL ink cartridges to support mid to long runs while reducing per-label costs. You can send us your artwork to see how much you can save, or see how the L701 has a great return on investment.

View Brochure | [PDF]

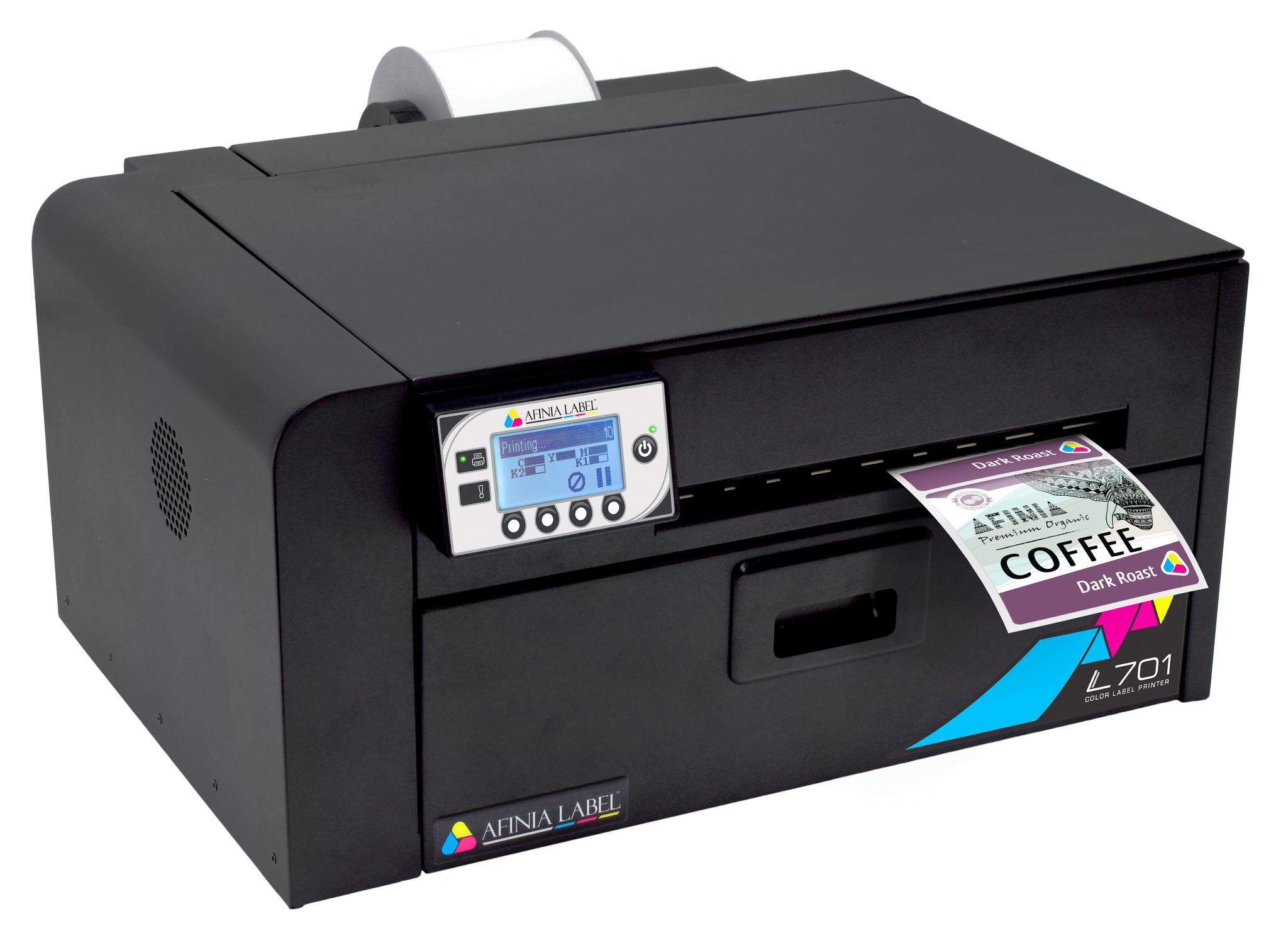

L701 Printer Overview

The intuitive L701 Color Label Printer is a great option for small- to mid-sized companies looking to print their own full-color labels in house. The Memjet-powered stationary printhead provides speed, industrial reliability, and stunning image quality.

Five large (150ml CYMKK) ink cartridges offer low label costs and high return on investment, making the Afinia Label L701 ideal for short- to medium-range print runs for retail, inventory, and product identification applications.

Key Features

  • Print speed of up to 12 m/min (8 IPS)
  • Compact form factor
  • Affordable cost without compromising quality
  • Works with label rolls or fanfold media
  • Professional output – crisp images and text

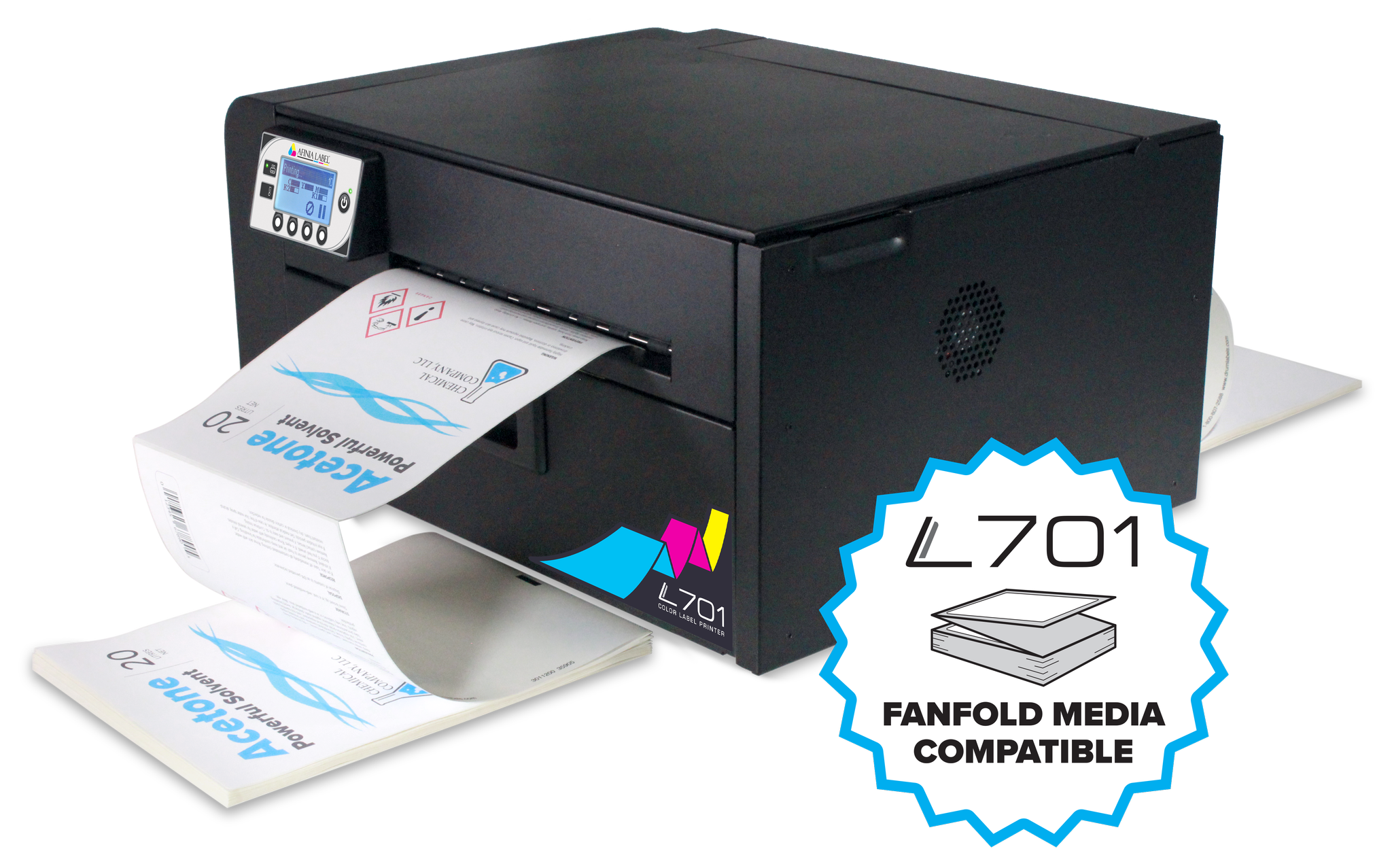

Fanfold Media Compatible

L701 Roll and Fanfold Media Compatible


Optional Rewinder

Print full speed in a roll-to-roll configuration. Continuous printing with the L701 is ideal for both die-cut and uncut media. Rewind your labels to tight, finished rolls, ready for application.


Specifications

Printer

Print method: Memjet Waterfall Printhead Technology® 11 Integrated Circuit (IC) Chips – 70,400 nozzles (6,400 per IC Chip)
Ink type: Dye
Print resolution: Up to 1600 x 1600 dpi
Print speed: Up to 203mm (8″) per second
Print width: 216mm (8.5″)
Media types: Compatible with a wide range of paper, polyester, polypropylene, and vinyl label stocks

Media

Width: 50.8mm216mm (2″–8.5″)
Thickness: Minimum 0.13mm (0.005″) Maximum 0.3mm including liner (0.01″)
Core diameter: Requires 76.2mm (3″) cardboard core
Media sensors: Gap, continuous, black mark
Die-cut label gap: Minimum 3.0mm (0.125″) Maximum 8.0mm (0.3″)
Black mark size: (3 mm wide, 25.4 mm long on left)
Maximum die-cut label length: 304.8mm (12″)
Maximum continuous print length: 1016mm (40″)

General

Interfaces: USB, TCP/IP (Manual IP configuration or DHCP), GPIO available for external device control
Operating system: Windows 7, 8, and 10 (32 and 64 bit)
Barcode font: 1D Barcode at least Grade B (Code39) with 10mils bar width
Two-dimensional code printing: 2D Barcode at least Grade B (PDF417) with 10mils cell size
Operating temperature: 15°35° C (59°95°F) at RH 2080%
Storage temperature: -5°50° C (23°113°F) at RH up to 85%, non-condensing at 65°
Dimensions – w/ unwinder: 549mm (21.6″) W, 679mm (21.6″) D, 285mm (11.2″) H
Dimensions – printer only: 510mm (20.1″) W, 385mm (15.2″) D, 285mm (11.2″) H
Weight – printer only: 30kg (66 lbs.)
Rated voltage: AC 110V – 220V
Rated frequency: 50 – 60Hz
Warranty: One year
