XL Unwinder / Rewinder System (UW300/RW300)

  • $4,350.00


For Roll-to-Roll Label Production

UW300 & RW300 Label stock unwinder & rewinder from Afinia Label

The Afinia Label XL Unwinder/Rewinder is the ideal system for companies looking to run higher-volume continuous jobs in a roll-to-roll configuration.

The XL UW/RW use uprated motors to ensure that heavier rolls can be handled with ease. The XL rewinder’s user-controlled clutch allows for roll tension to be adjusted easily, allowing narrow labels to be rewound precisely without excessive tension that normally causes print errors. The maximum roll diameter of 300mm (11.8 in) allows for a longer uninterrupted workflow, delivering labels directly onto a roll ready for application.

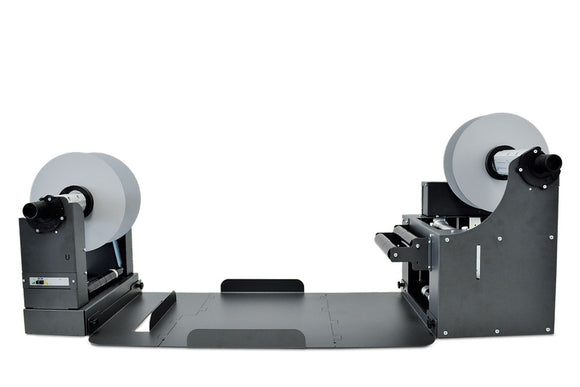

The XL Label Unwinder and Rewinder can be used independently or as a complete roll-to-roll system.

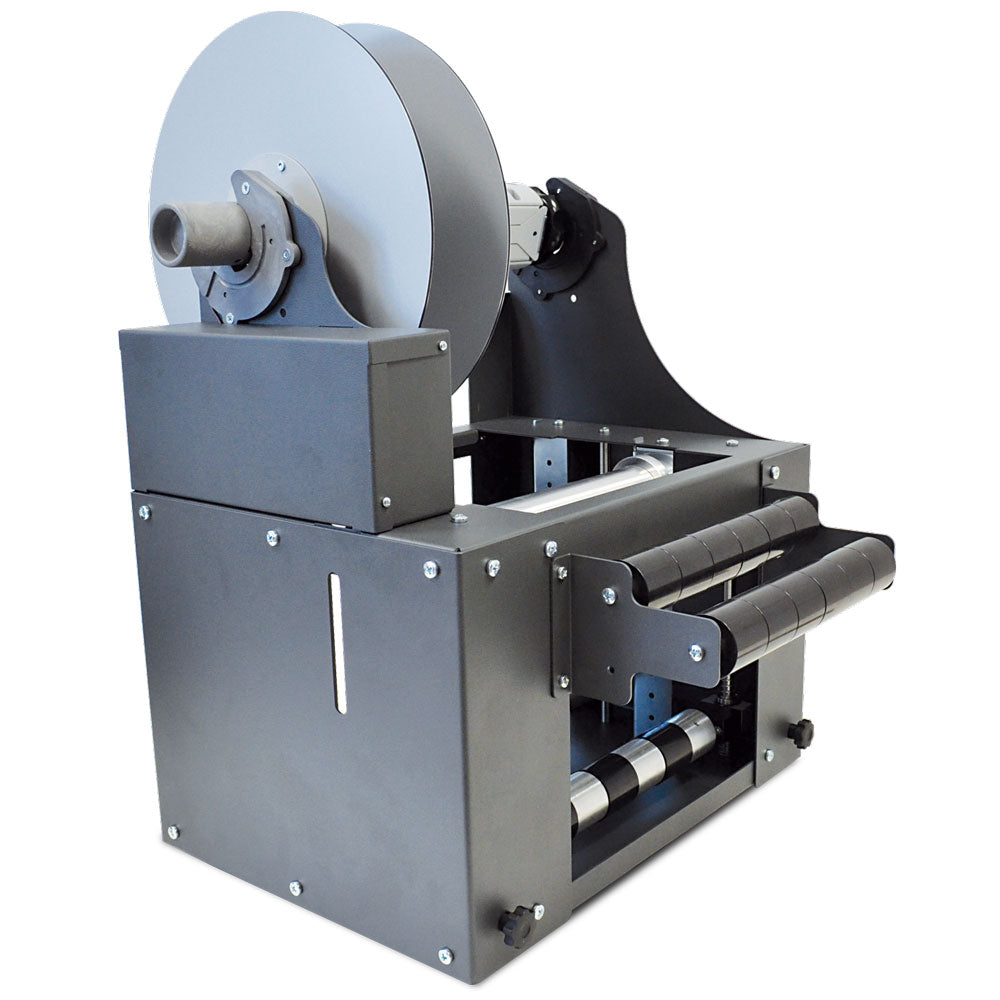

XL Unwinder Label stock unwinder from Afinia Label
XL Unwinder
XL Rewinder Label stock rewinder from Afinia Label
XL Rewinder

Specifications

XL Unwinder & Rewinder

Maximum Roll OD: 11.8″ (300mm)
Maximum Media Width: 9.4″ (240mm)
Maximum Speed: 51rpm
Core Diameter: 3″ (76.2mm)
